Future Main Battle Tank & NGMBT

[fire starter]

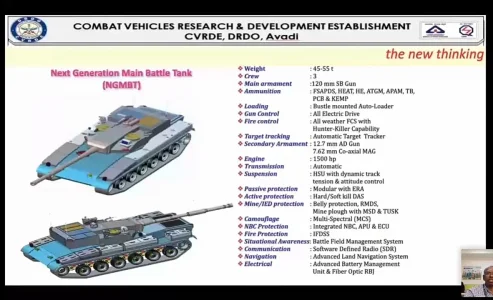

Drdo NGMBT.



[fire starter]

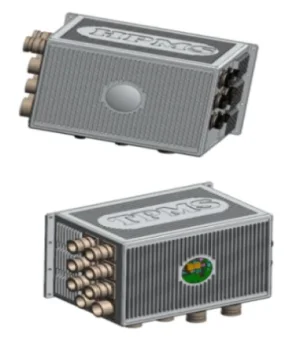

Intelligent Power Management System (IPMS).
The IPMS is a new age power distribution technology which uses solid state switches and current sensors to distribute the power flexibly, reliably and with sharp protection. IPMS uses dedicated Solid State Power Control (SSPC) Cards to realize the technology. The SSPC cards receive configuration settings from the main controller for its operation. This has dedicated memory to store the load data for offline prognostic studies.


Will be used in NGMBT



[fire starter]

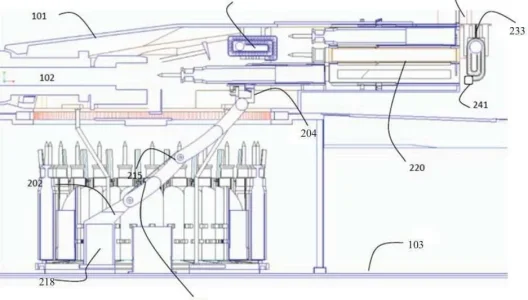

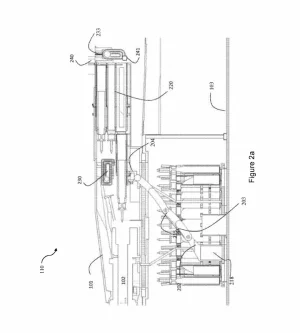

Interesting patent from drdo showing both bustle and carousel auto loader.

WO2022162684A1 - An automated projectile loader and a method of loading projectiles for a vehicle - Google Patents

An automated projectile loader and a method of loading projectile for a vehicle is disclosed. The automated projectile loader includes a carousal projectile unit mounted on a hull of the vehicle. The carousal projectile unit includes a carousal storage adapted to store a plurality of projectiles...

patents.google.com



[fire starter]

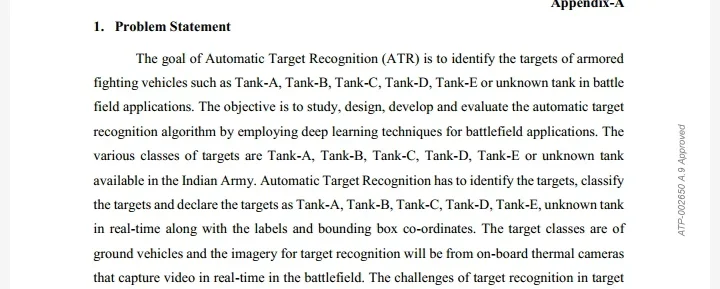

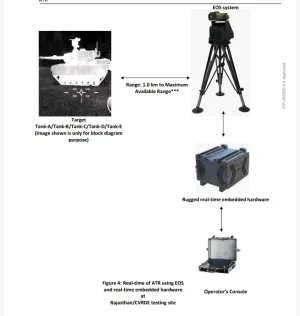

AI based Software for Automatic Target Recognition (ATR) of Armoured Fighting Vehicles (AFVs).



[fire starter]

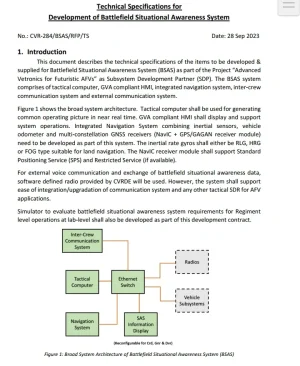

Cvrde Battlefield Situational Awareness System.



[Bleh]

Transferring from DFI..

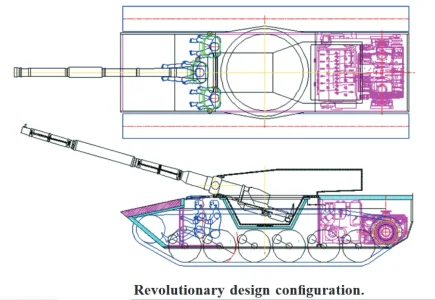

1st concepts with crews below turret (with hatches for entry).

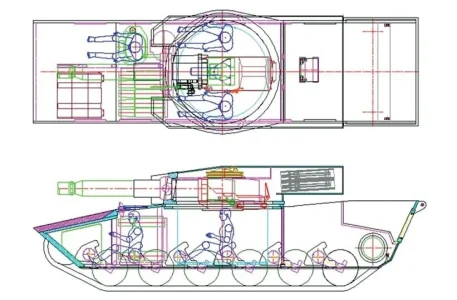

2nd concept with all 3 crew in cabin:

Drdo NGMBT.
View attachment 109

Where'd you get this one?



[Bleh]

Drdo NGMBT.
View attachment 109

View: https://twitter.com/AndreiBtvt/status/1833562884074307952



[username unkown]

View: https://twitter.com/AndreiBtvt/status/1833562884074307952
View attachment 9464

So something similar to t 14 armata



[Bleh]

So something similar to t 14 armata

More like Burlak Armata like hull autoloader plus a bustle autoloader... Total 40 ready rounds in unmanned turret.

We need fire-proof explosive like Semtex for propellant charge



[username unkown]

More like Burlak Armata like hull autoloader plus a bustle autoloader... Total 40 ready rounds in unmanned turret.

We need fire-proof explosive like Semtex for propellant charge

its good thing I hope we see it soon and everything goes right



[username unkown]

More like Burlak Armata like hull autoloader plus a bustle autoloader... Total 40 ready rounds in unmanned turret.

We need fire-proof explosive like Semtex for propellant charge

By design it will have separate crew capsule



[Bleh]

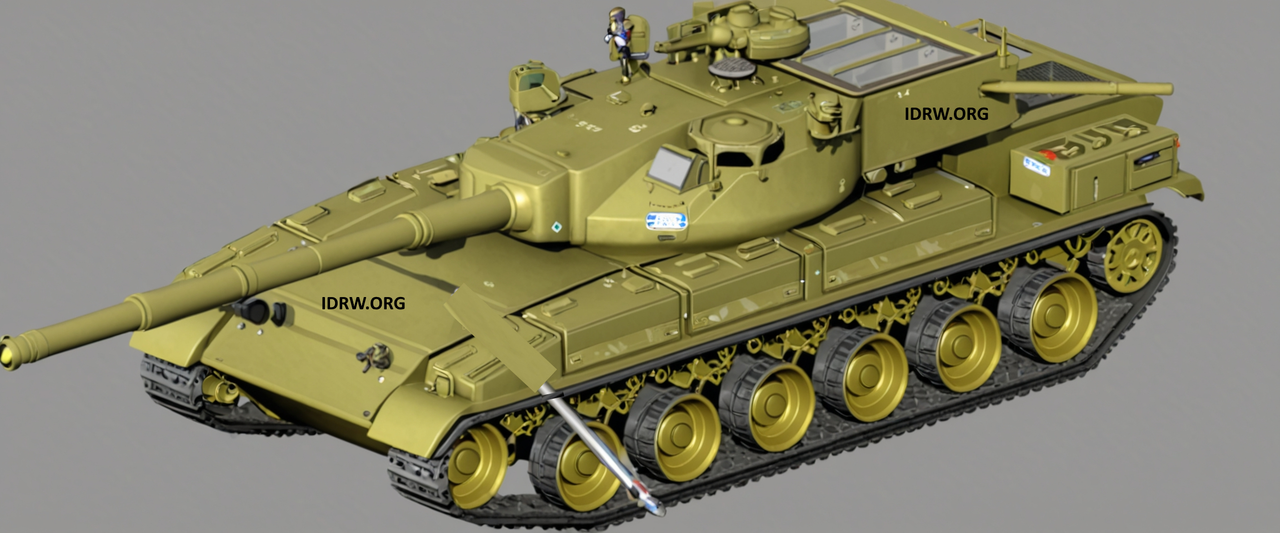

DRDO’s Next-Gen Main Battle Tank Nears Critical Design Review – Indian Defence Research Wing

idrw.org



[Blademaster]

DRDO’s Next-Gen Main Battle Tank Nears Critical Design Review – Indian Defence Research Wing

idrw.org

View attachment 10466

next generation decline should include manless turret.



[GaudaNaresh]

Um, where is the ' taking your jhaari of nets and poles to catch drones' upgrade ? I thought Ukronazi war has proved at this point that for tanks to be tanks moving forward, they gotta look like they are actually a moving shrubbery with a barrel poking out or else they die to 50000 dollar stupid drones.



[Corvus Splendens]

DRDO’s Next-Gen Main Battle Tank Nears Critical Design Review – Indian Defence Research Wing

idrw.org

View attachment 10466

It's got that cold-war era American design vibe. But is that a turret hatch ? Thought it'd have an unmanned turret. Otherwise it has a reasonably low profile for a 60 ton design.

Um, where is the ' taking your jhaari of nets and poles to catch drones' upgrade ? I thought Ukronazi war has proved at this point that for tanks to be tanks moving forward, they gotta look like they are actually a moving shrubbery with a barrel poking out or else they die to 50000 dollar stupid drones.

Field modification likely. You can't standardize this stuff against camera guided drones. Hard-kill APS will do a lot of heavy lifting in this regard. But I'm not sure if APS can counter a dumb-drop package. You can at least expect a Barracuda style camo system. But it's really a band-aid solution. Either active jamming or a self propelled tracked 30-40mm airburst hose should tag along with the MBTs.

But then these will get prioritized by long range smart munitions and will require small VSHORAD platforms to shadow it. Warfare is scarier these days.



[Bleh]

Um, where is the ' taking your jhaari of nets and poles to catch drones' upgrade ? I thought Ukronazi war has proved at this point that for tanks to be tanks moving forward, they gotta look like they are actually a moving shrubbery with a barrel poking out or else they die to 50000 dollar stupid drones.

That's all attachments... Modern tanks is gonna be very EW, APS etc. dependent. Plus signature reduction paint, camo-net etc.

It's got that cold-war era American design vibe. But is that a turret hatch ? Thought it'd have an unmanned turret. Otherwise it has a reasonably low profile for a 60 ton design.

It's a 50ton design.

Check this older post. https://defenceforumbharat.com/threads/future-main-battle-tank-ngmbt.92/post-8705

In the old unmanned turret design there may be hatches for crews to climb down & sit down in the hull like the driver does.
I think that tender is IRDW made & not any official. Ignore it, just the news.



[GaudaNaresh]

That's all attachments... Modern tanks is gonna be very EW, APS etc. dependent. Plus signature reduction paint, camo-net etc.



It's a 50ton design.

Check this older post. https://defenceforumbharat.com/threads/future-main-battle-tank-ngmbt.92/post-8705

In the old unmanned turret design there may be hatches for crews to climb down & sit down in the hull like the driver does.
I think that tender is IRDW made & not any official. Ignore it, just the news.

bhai if i buy a car and i need a roofrack, i expect the attachment to come with the car, not buy separate.



[Blood+]

It's got that cold-war era American design vibe. But is that a turret hatch ? Thought it'd have an unmanned turret. Otherwise it has a reasonably low profile for a 60 ton design.

It's just an artist's impression.

Field modification likely. You can't standardize this stuff against camera guided drones. Hard-kill APS will do a lot of heavy lifting in this regard. But I'm not sure if APS can counter a dumb-drop package. You can at least expect a Barracuda style camo system. But it's really a band-aid solution. Either active jamming or a self propelled tracked 30-40mm airburst hose should tag along with the MBTs.

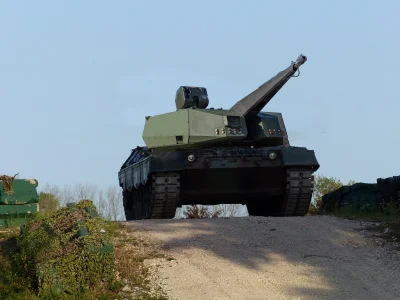

View attachment 10493

A 30mm auto cannon with air burst ammo would be a lot more usefull against drones than an APS would ever be, in my oponion that is.



[SwordOfDarkness]

It's just an artist's impression.


A 30mm auto cannon with air burst ammo would be a lot more usefull against drones than an APS would ever be, in my oponion that is.

If you want to cut costs, even 40mm grenade launcher with programmable airburst would be better



[Corvus Splendens]

If you want to cut costs, even 40mm grenade launcher with programmable airburst would be better

You can hire Ivan with a shotgun and do it cheaper.
